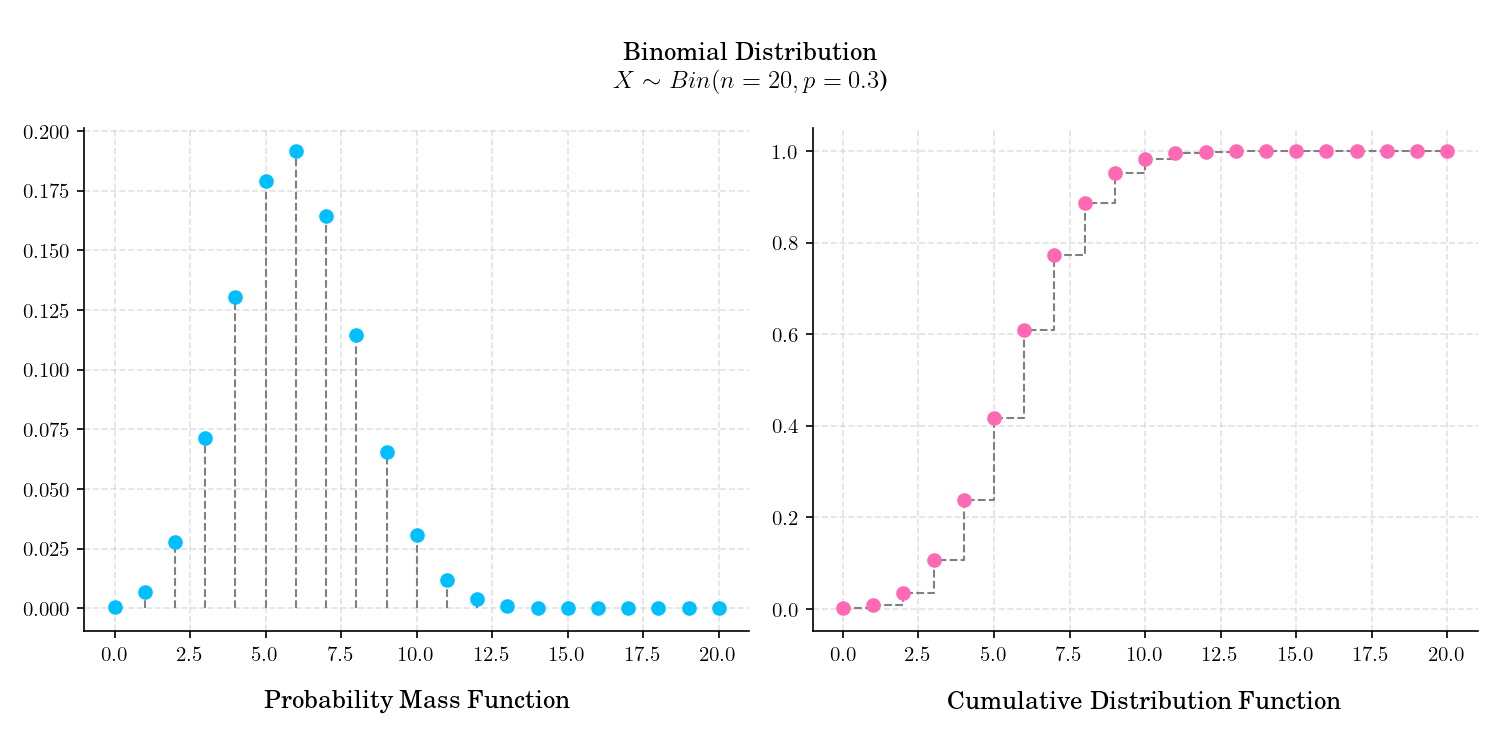

Day 1 : Binomial#

/home/runner/work/advent-calendar-2023/advent-calendar-2023/examples/plot_advent_01_Binomial.py:26: SyntaxWarning: invalid escape sequence '\s'
title = f"\n Binomial Distribution \n $X \sim Bin(n={n}, p={p}$)"
# Author: Dialid Santiago <d.santiago@outlook.com>
# License: MIT
# Description: Advent Calendar Day 1
import matplotlib.pyplot as plt
from matplotlib.gridspec import GridSpec
from scipy.stats import binom
import numpy as np
plt.style.use(
"https://raw.githubusercontent.com/quantgirluk/matplotlib-stylesheets/main/quant-pastel-light.mplstyle")
n = 20
p = 0.3
rv = binom(n=n, p=p)
x = np.arange(0, n + 1, 1)
title = f"\n Binomial Distribution \n $X \sim Bin(n={n}, p={p}$)"
fig = plt.figure(figsize=(10, 5), dpi=150)
gs = GridSpec(1, 4, wspace=0.5)
ax1 = fig.add_subplot(gs[:2])
ax2 = fig.add_subplot(gs[2:])
ax1.vlines(x, 0, rv.pmf(x), colors='grey', linestyles='--', lw=1)
ax1.plot(x, rv.pmf(x), marker='o', linestyle='', color='deepskyblue')
plt.plot(x, rv.cdf(x), drawstyle='steps-post',
color='grey', lw=1, linestyle='--')
ax2.plot(x, rv.cdf(x), color='hotpink', marker='o', linestyle='')
ax1.set_title('Probability Mass Function', y=-0.18)
ax2.set_title('Cumulative Distribution Function', y=-0.18)
fig.suptitle(title)
gs.tight_layout(fig)
# fig.savefig('01_Binomial')
plt.show()
Total running time of the script: (0 minutes 5.409 seconds)
