Day 7 : Student-t#

# Author: Dialid Santiago <d.santiago@outlook.com>
# License: MIT
# Description: Advent Calendar 2023
import matplotlib.pyplot as plt
from matplotlib.gridspec import GridSpec
from scipy.stats import t
import numpy as np
plt.style.use("https://raw.githubusercontent.com/quantgirluk/matplotlib-stylesheets/main/quant-pastel-light.mplstyle")

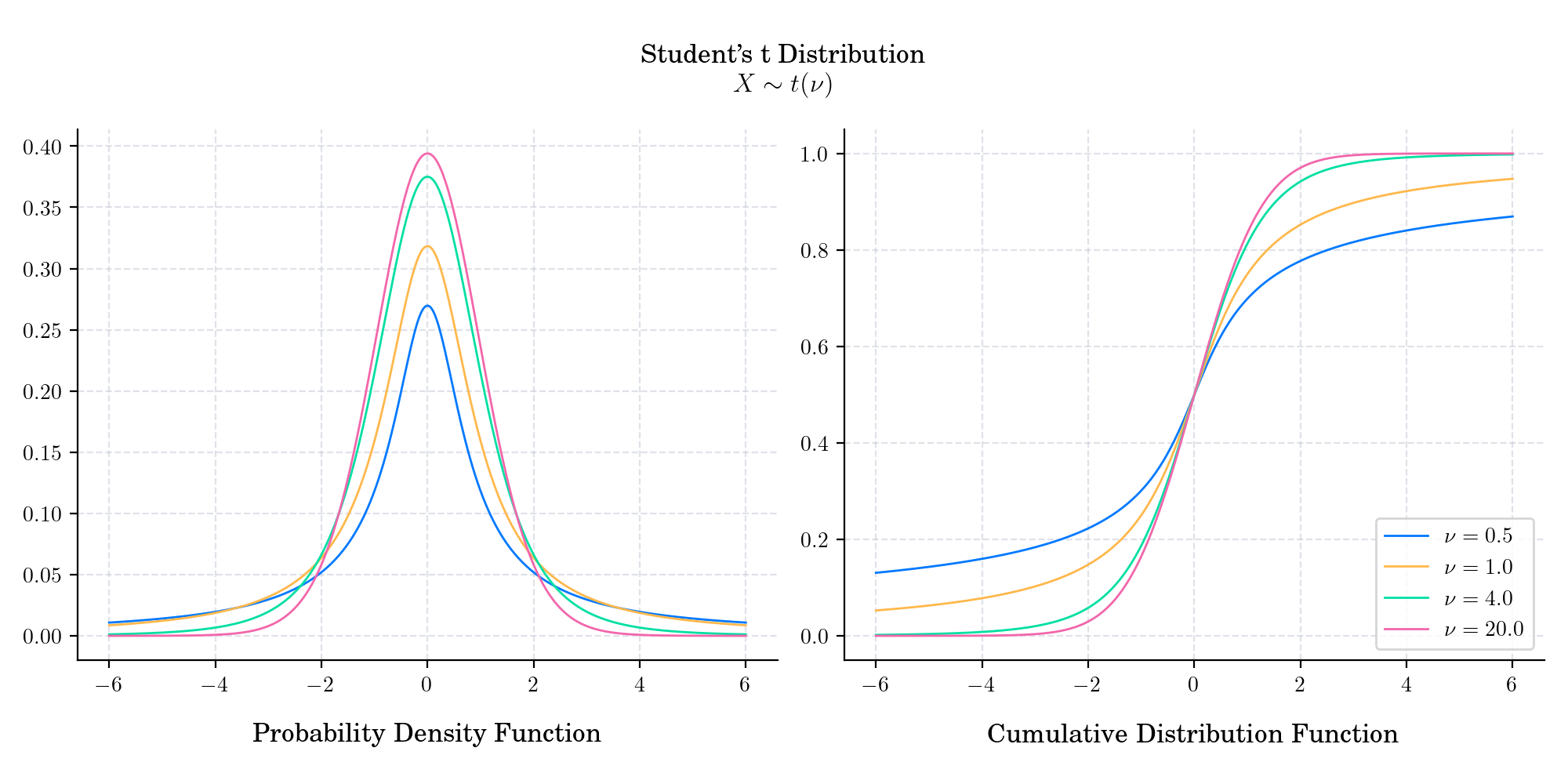

title: str = f"\n Student's t Distribution \n $X \\sim t(\\nu)$"
fig = plt.figure(figsize=(10, 5), dpi=200)
gs = GridSpec(1, 4, wspace=0.5)
ax1 = fig.add_subplot(gs[:2])
ax2 = fig.add_subplot(gs[2:])
x = np.linspace(-6., 6., 500)
params = [0.5, 1.0, 4.0, 20.0]
for nu in params:
rv = t(df=nu)
ax1.plot(x, rv.pdf(x), label=f"$\\nu={nu}$")
ax2.plot(x, rv.cdf(x), label=f"$\\nu={nu}$")
ax1.set_title(r'Probability Density Function', y=-0.18)
ax2.legend(loc='lower right')
ax2.set_title('Cumulative Distribution Function', y=-0.18)
fig.suptitle(title)
gs.tight_layout(fig)
# fig.savefig('07_Student_t')
plt.show()
Total running time of the script: (0 minutes 2.333 seconds)
