Day 21: Inflated Beta#

# Author: Dialid Santiago <d.santiago@outlook.com>
# License: MIT
# Description: Advent Calendar 2023
import matplotlib.pyplot as plt
from matplotlib.gridspec import GridSpec
from scipy.stats import beta
import numpy as np
plt.style.use("https://raw.githubusercontent.com/quantgirluk/matplotlib-stylesheets/main/quant-pastel-light.mplstyle")

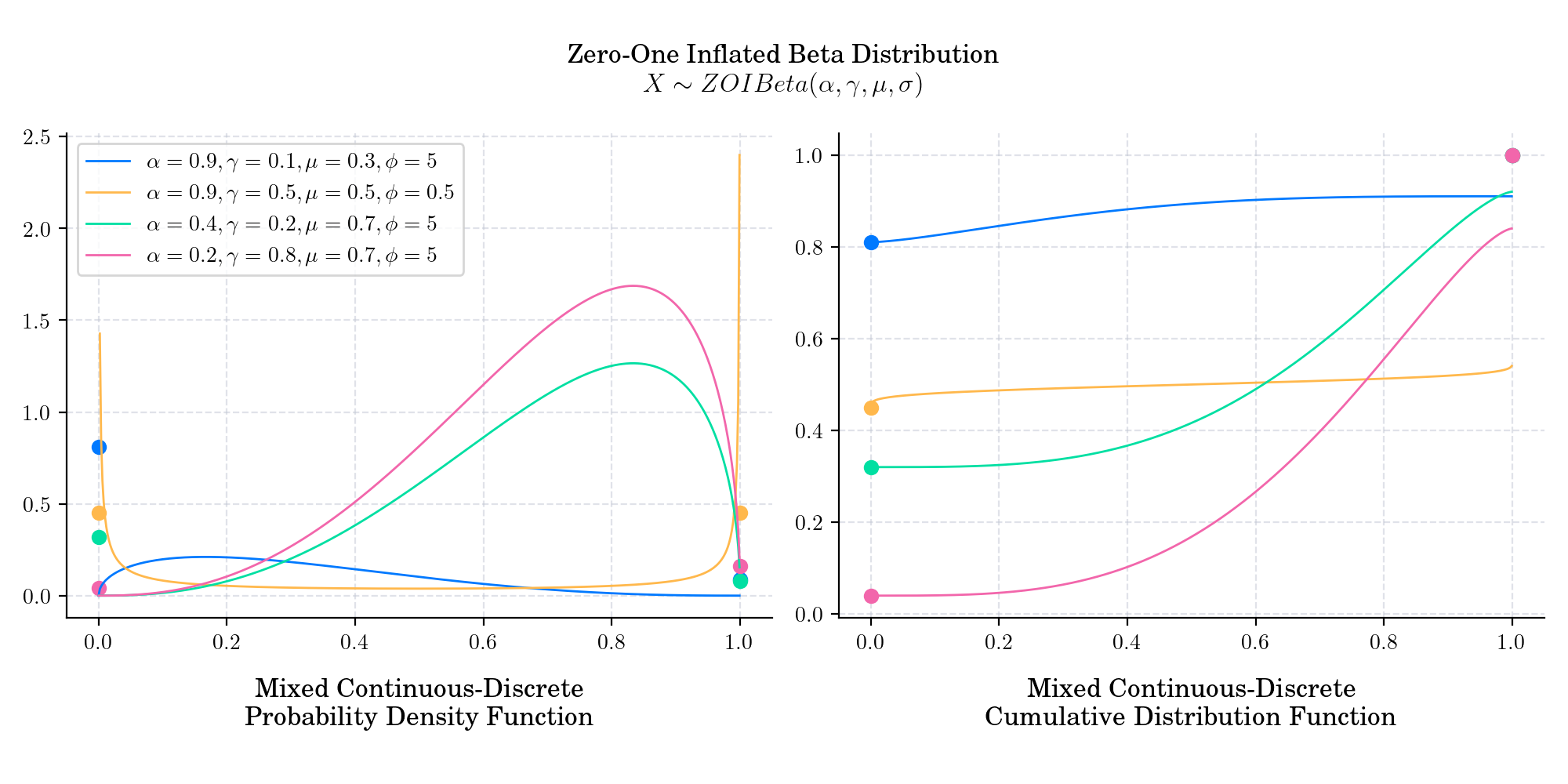

def plot_zoibeta(parameters, title=None, **kwargs):
title = title if title else f"\n Zero-One Inflated Beta Distribution \n $X \\sim ZOIBeta(\\alpha, \\gamma, \\mu, " \
f"\\sigma)$ "
fig = plt.figure(figsize=(10, 5), *kwargs)
gs = GridSpec(1, 4, wspace=0.5)
ax1 = fig.add_subplot(gs[:2])
ax2 = fig.add_subplot(gs[2:])
x = np.linspace(0, 0.999, 500)
for (alpha, gamma, mu, phi) in parameters:
pi0 = alpha * (1.0 - gamma)
pi1 = alpha * gamma
a = mu * phi
b = (1 - mu) * phi
rv = beta(a, b)
ax1.plot(x, (1 - pi0 - pi1) * rv.pdf(x), label=f"$\\alpha={alpha}, \\gamma={gamma}, \\mu={mu}, \\phi={phi}$")
ax1.scatter([0, 1], [pi0, pi1])
ax2.plot(x, pi0 + (1 - pi0 - pi1) * rv.cdf(x),
label=f"$\\alpha={alpha}, \\gamma={gamma}, \\mu={mu}, \\phi={phi}$")
ax2.scatter([0, 1], [pi0, 1.0])
ax1.legend()
ax1.set_title('Mixed Continuous-Discrete\n Probability Density Function', y=-0.25)
ax2.set_title('Mixed Continuous-Discrete\n Cumulative Distribution Function', y=-0.25)
fig.suptitle(title)
gs.tight_layout(fig)
plt.show()
return fig
def main():
zoi_beta_params = [(0.9, 0.1, 0.3, 5), (0.9, 0.5, 0.5, 0.5), (0.4, 0.2, 0.7, 5), (0.2, 0.8, 0.7, 5)]
figure = plot_zoibeta(zoi_beta_params, dpi=200)
# figure.savefig('21_ZOIBeta')
if __name__ == "__main__":
main()
Total running time of the script: (0 minutes 1.515 seconds)
