Day 4 : Pareto#

# Author: Dialid Santiago <d.santiago@outlook.com>
# License: MIT
# Description: Advent Calendar 2023
import matplotlib.pyplot as plt
from matplotlib.gridspec import GridSpec
from scipy.stats import pareto
import numpy as np
# noinspection DuplicatedCode
plt.style.use(
"https://raw.githubusercontent.com/quantgirluk/matplotlib-stylesheets/main/quant-pastel-light.mplstyle")

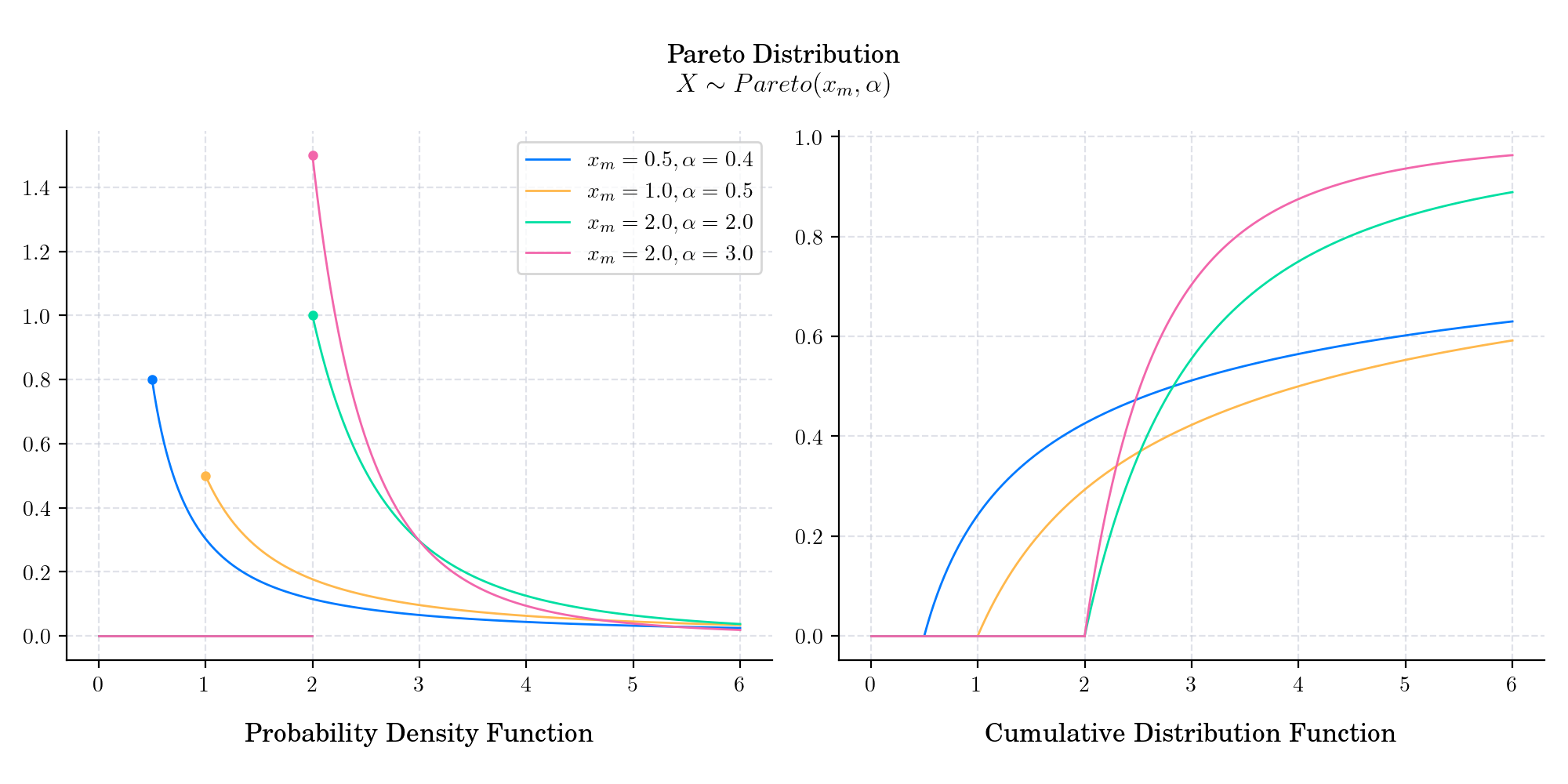

title: str = f"\n Pareto Distribution \n $X \\sim Pareto(x_m, \\alpha)$"
fig = plt.figure(figsize=(10, 5), dpi=200)
gs = GridSpec(1, 4, wspace=0.5)
ax1 = fig.add_subplot(gs[:2])
ax2 = fig.add_subplot(gs[2:])
params = [(0.5, 0.4), (1.0, 0.5), (2.0, 2.0), (2.0, 3.0)]
for (xm, b) in params:
x1 = np.linspace(0.0, xm - 0.0001, 100)
x2 = np.linspace(xm, 6., 500)
rv = pareto(b=b, scale=xm, )
x = x2
ax1.plot(x, rv.pdf(x), label=f"$x_m={xm}, \\alpha={b}$")
ax2.plot(x, rv.cdf(x), label=f"$x_m={xm}, \\alpha={b}$")
c = ax1.get_lines()[-1].get_color()
x = x1
ax1.plot(xm, rv.pdf(xm), color=c, marker='o', markersize=3.5)
ax1.plot(x, rv.pdf(x), color=c)
ax2.plot(x, rv.cdf(x), color=c)
ax1.set_title('Probability Density Function', y=-0.18)
ax1.legend()
ax2.set_title('Cumulative Distribution Function', y=-0.18)
fig.suptitle(title)
gs.tight_layout(fig)
# fig.savefig('04_Pareto')
plt.show()
Total running time of the script: (0 minutes 1.648 seconds)
